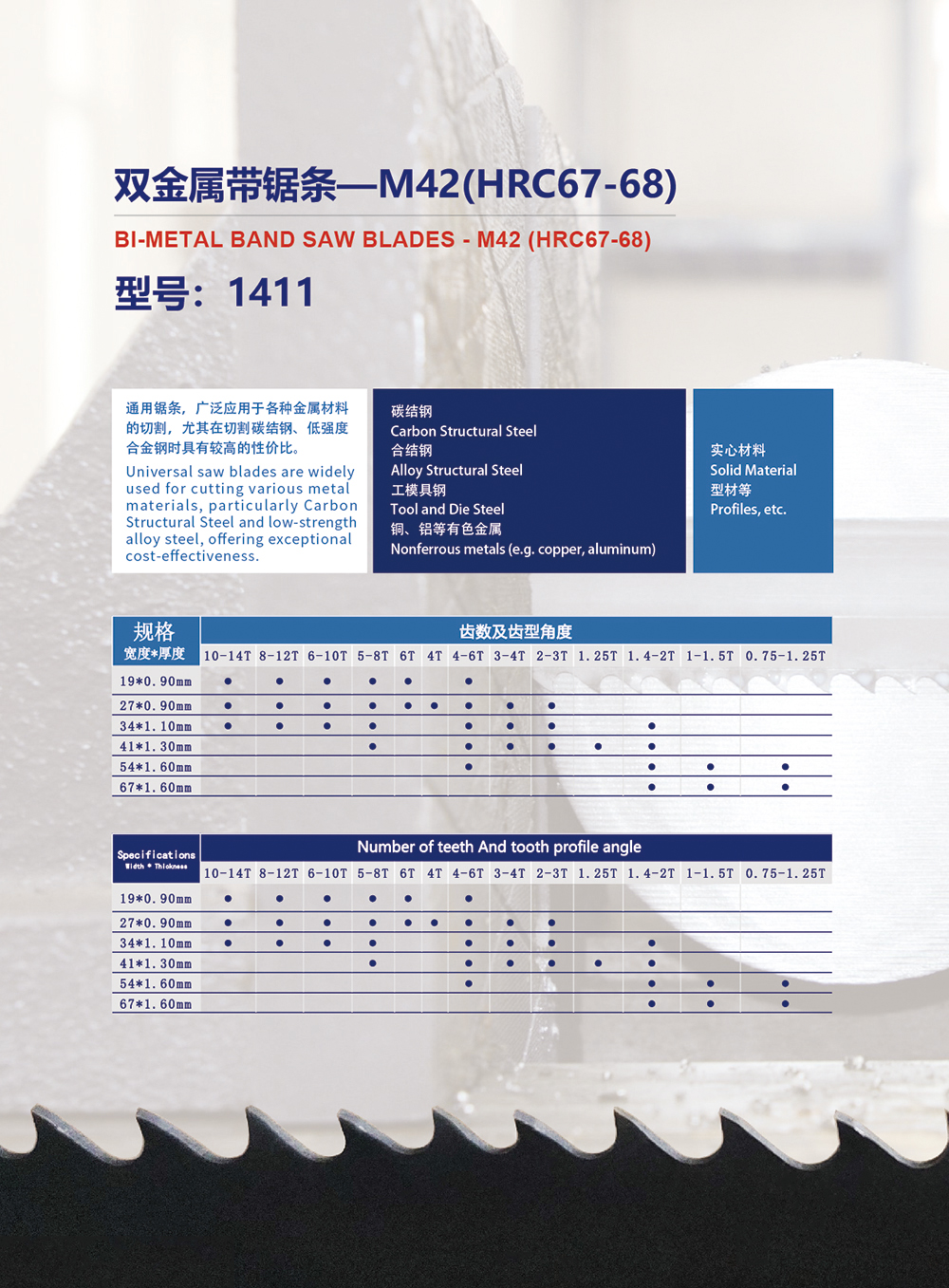

Universal saw blade is widely used in cutting of various metal materials especially when cutting carbon steel and low strength alloy steel, with high cost performance.
碳结钢
Carbon bonded steel
合结钢
Bonded steel
工模具钢
Tool and mould steel
铜、铝等有色金属
Nonferrous metals such as copper and aluminum
实心材料
Solid material
型材等
Profiles, etc
齿数及齿型角度 Number of teeth And tooth profile angle
10-14T
8-12T
6-10T
5-8T
6T
4T
4-6T
3-4T
2-3T
1.25T
1.4-2T
1-1.5T
0.75-1.25T
19*0.90mm
·
·
·
·
·
·
27*0.90mm
·
·
·
·
·
·
·
·
·
34*1.10mm
·
·
·
·
·
·
·
41*1.30mm
·
·
·
·
·
·
54*1.60mm
·
·
·
·
67*1.60mm
·
·
·

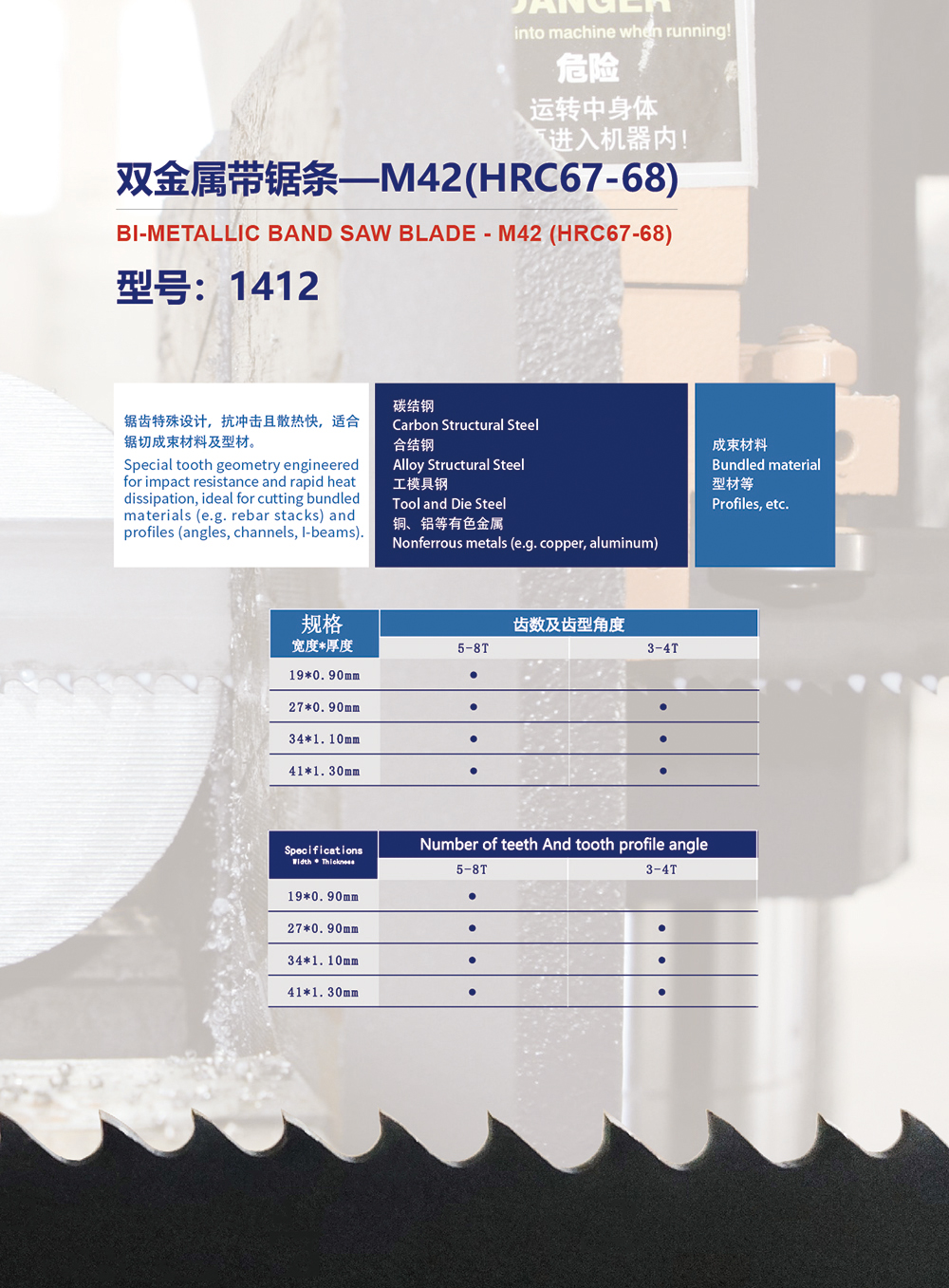

双金属带锯条一M42(HRC67-68)
BIMETALLIC BAND SAW BLADE-M42(HRC67-68)
型号/Model:1412
锯齿特殊设计，抗冲击且散热快，适合锯切成束材料及型材。
Special serrated design for impact resistance and fast heat dissipation,suitable forsawBundled materials and profiles
碳结钢
Carbon bonded steel
合结钢
Bonded steel
工模具钢
Tool and mould steel
铜、铝等有色金属
Nonferrous metals such as copper and aluminum
成束材料
Bundled material
型材等
Profiles, etc
齿数及齿型角度 Number of teeth And tooth profile angle
5-8T
3-4T
19*0.90mm
·
27*0.90mm
·
·
34*1.10mm
·
·
41*1.30mm
·
·

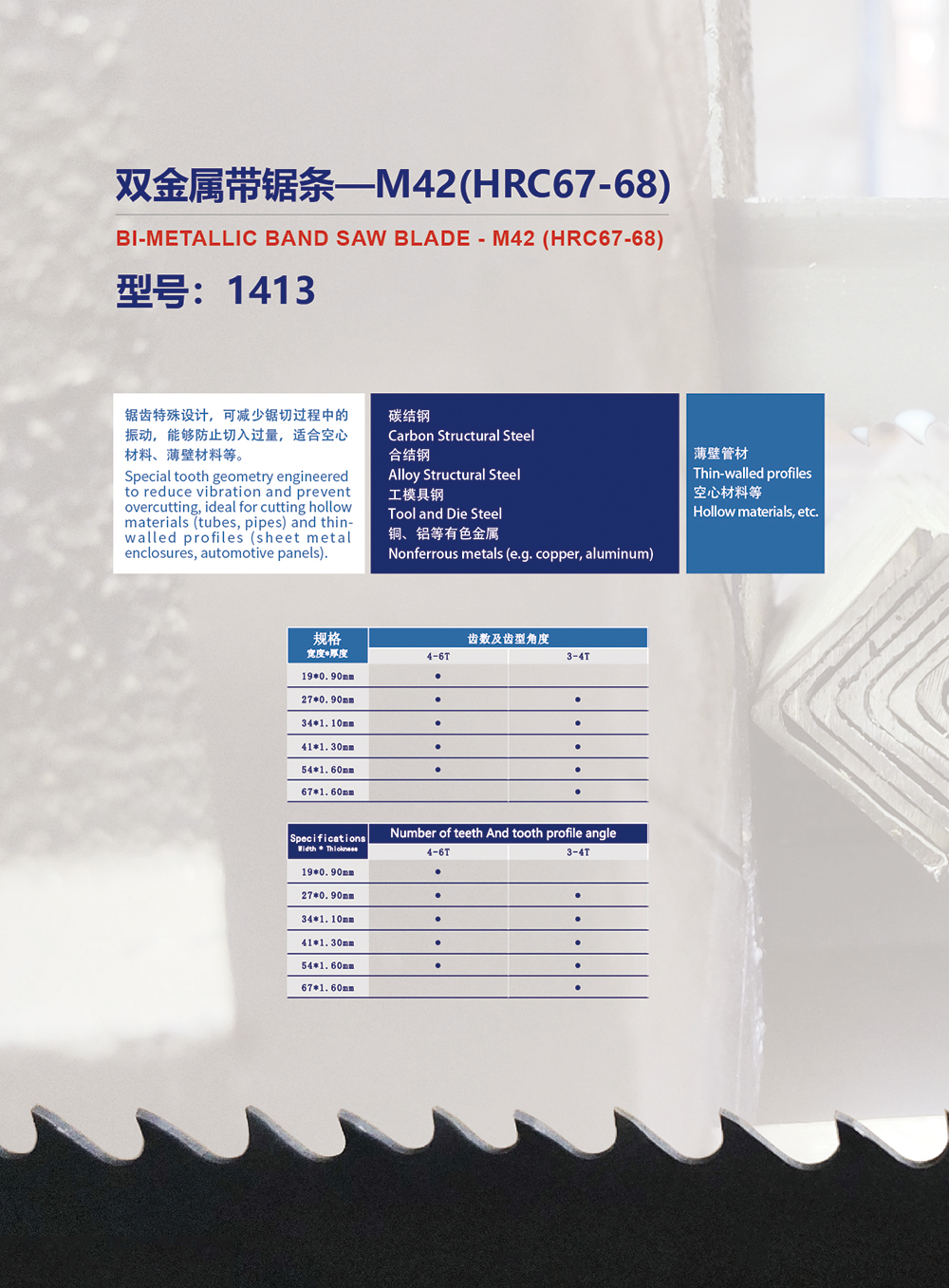

双金属带锯条一M42(HRC67-68)
BIMETALLIC BAND SAW BLADE-M42(HRC67-68)
型号/Model:1413
锯齿特殊设计，可减少锯切过程中的振动，能够防止切入过量，适合空心材料、薄壁材料等。
Special serration design reduces sawingCutting processVibration in the can prevent excessive cutting,suitable for hollow materials, thin wall materials, etc.
