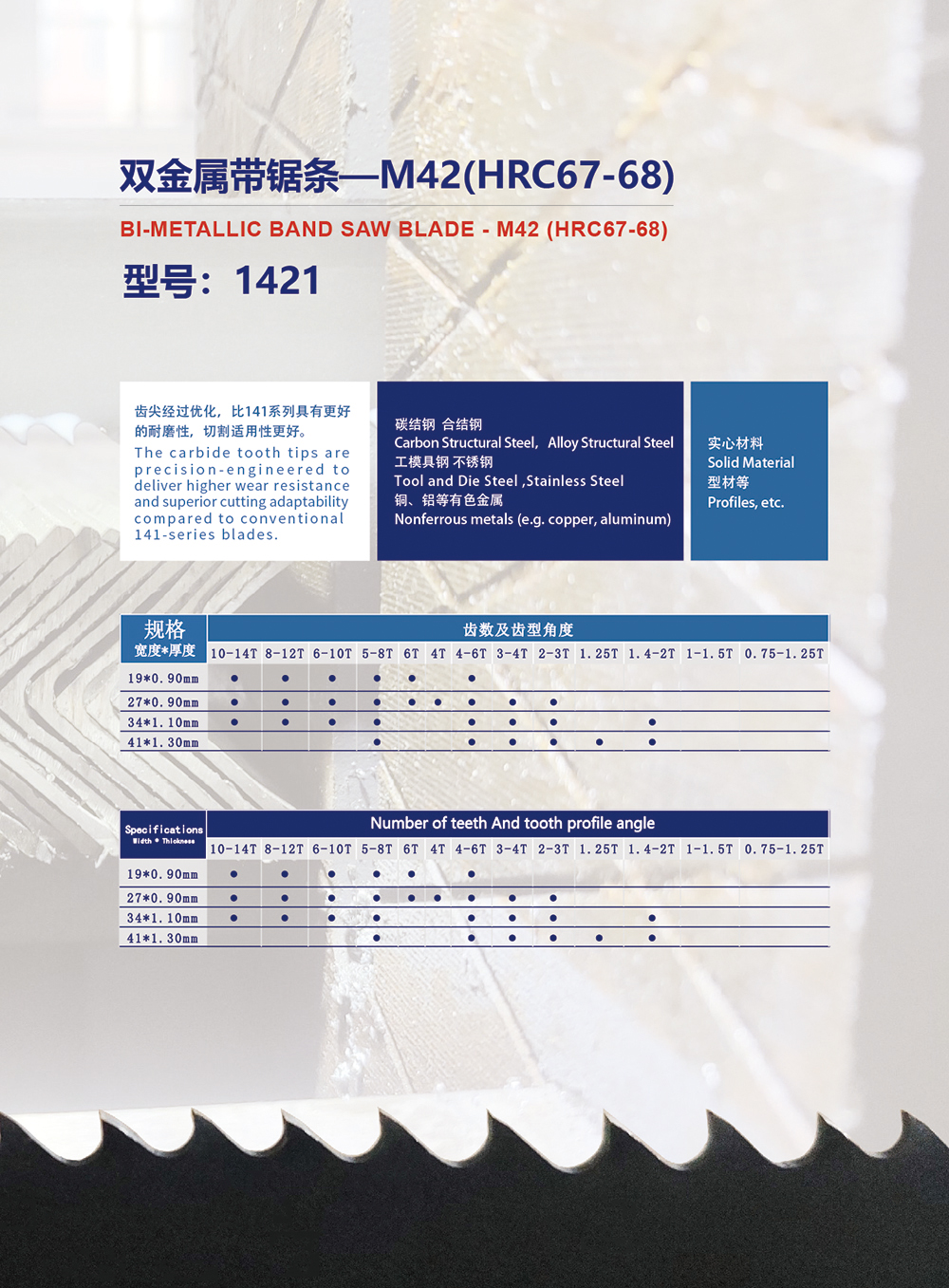

双金属带锯条一M42(HRC67-68)
BIMETALLIC BAND SAW BLADE-M42(HRC67-68)
型号/Model:1421
齿尖经过优化,比141系列具有更好的耐磨性,切割适用性更好。
Optimized tip of tooth provide greater wear resistance and cutting suitability than 141 series.
碳结钢
Carbon bonded steel
合结钢 工模具钢
Alloy bonded steel ,Tooling and mould steel
不锈钢 铜、铝等有色金属
Nonferrous metals such as stainless steel,copper and aluminum
实心材料
Solid material
型材等
Profiles, etc
齿数及齿型角度    Number of teeth And tooth profile angle
10-14T
8-12T
6-10T
5-8T
6T
4T
4-6T
3-4T
2-3T
1.25T
1.4-2T
1-1.5T
0.75-1.25T
19*0.90mm
·
·
·
·
·
·
27*0.90mm
·
·
·
·
·
·
·
·
·
34*1.10mm
·
·
·
·
·
·
·
·
41*1.30mm
·
·
·
·
·
·

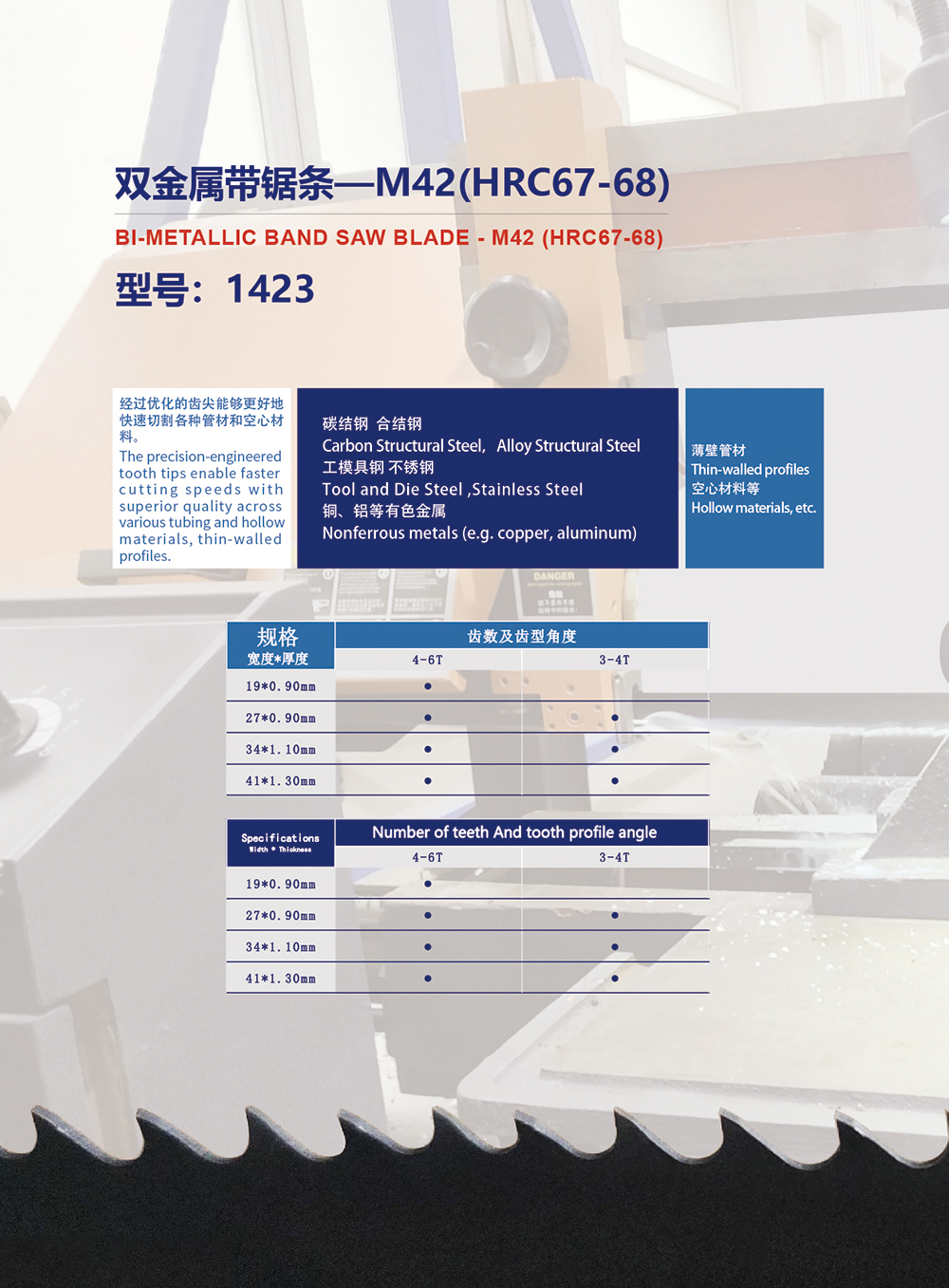

双金属带锯条一M42(HRC67-68)
BIMETALLIC BAND SAW BLADE-M42(HRC67-68)
型号/Model:1423
经过优化的齿尖能够更好地快速切割各种管材和空心材料。
Optimized tips of tooth allow fast cutting of a wide range of pipe and hollow materials.
碳结钢
Carbon bonded steel
合结钢
Bonded steel
工模具钢
Tool and mould steel
不锈钢 铜、铝等有色金属
Nonferrous metals such as stainless steel, copper and aluminum
薄壁管材
Thin-wall pipe material
空心材料等
Hollow materials, etc
齿数及齿型角度    Number of teeth And tooth profile angle
4-6T
3-4T
19*0.90mm
·
27*0.90mm
·
·
34*1.10mm
·
·
41*1.30mm
·
·

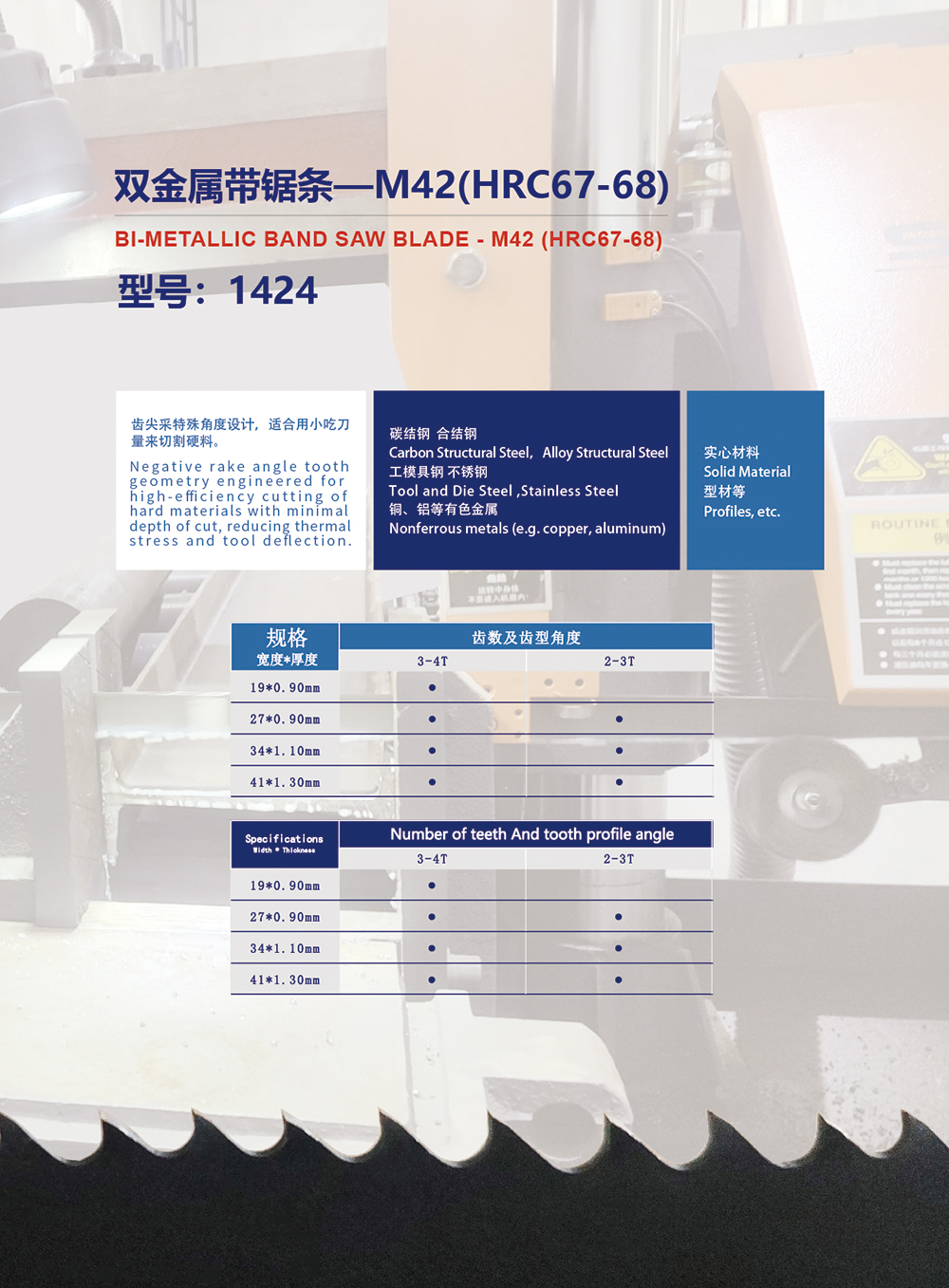

双金属带锯条一M42(HRC67-68)
BIMETALLIC BAND SAW BLADE-M42(HRC67-68)
型号/Model:1424
齿尖采特殊角度设计,适合用小吃刀量来切割硬料。
Tip of tooth special measures Angle design,suitable for cutting hard materials with asnasnack knife.
碳结钢 合结钢 工模具钢
Carbon bonded steel,Alloy bonded steel,Tool and mould steel
不锈钢 铜、铝等有色金属
Nonferrous metals such as stainless steel,copper and aluminum
实心材料
Solid material
型材等
Profiles,etc
齿数及齿型角度    Number of teeth And tooth profile angle
3-4T
2-3T
19*0.90mm
·
27*0.90mm
·
·
34*1.10mm
·
·
41*1.30mm
·
·
